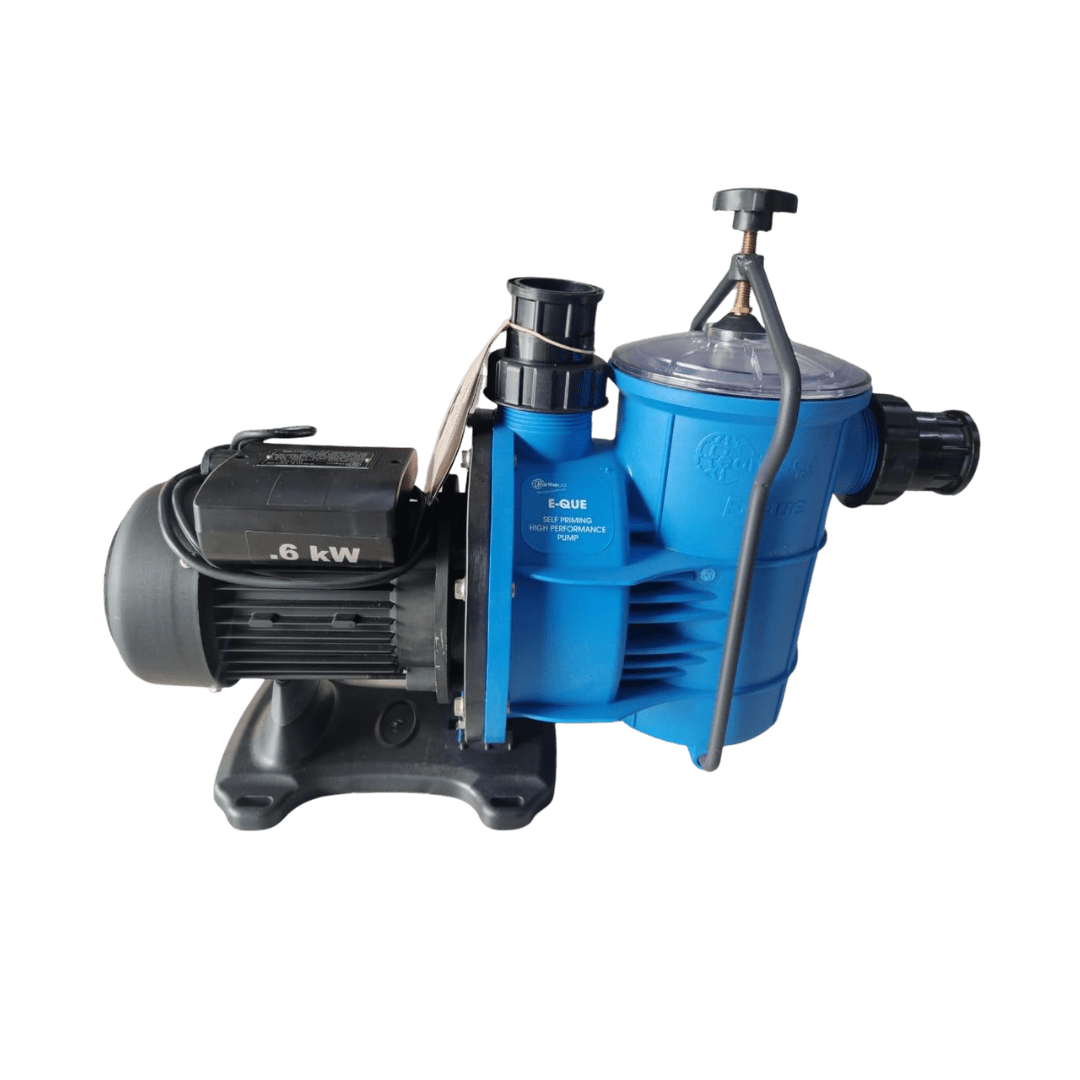

POOL PUMP AND MOTOR 0,6KW EARTHeCO (EQ/EQUE) Product Description: The pool pump 0.6kW from EARTHeCO, model EQ and EQUE, is a self-priming centrifugal pump designed for consistent daily water circulation in residential pool systems. Built around a single phase squirrel cage induction motor rated at 0.6kW and 0.75HP, this pool pump 0.6kW unit runs on 230V at 50Hz with a current draw of 4.2A, a motor speed of 2800 RPM, and a total head of 12 metres. The motor carries an IP54 ingress protection rating and Insulation Class F, making it suitable for outdoor pool environments across South Africa. The pump body is blue polypropylene fitted with a clear lid strainer pot, allowing easy visual inspection of the leaf trap basket without removing the lid. The closed vane impeller delivers consistent flow and pressure output, while the mechanical shaft seal provides long term leak prevention. Internal threaded unions on the inlet and outlet allow for straightforward installation. Unions supplied include one 50mm and one 40mm union. This pool pump 0.6kW model is compatible with AQUA MAX, Premium Black, Quality, Speck, and Eartheco 1 bag and 2 bag sand filters. It is suited to pools up to approximately 50 000 litres. It is not intended for use as a booster pump, feature pump, or above ground pool pump. Installation must be carried out by a qualified pool technician and all electrical connections must be completed by a certified electrician. South African conditions present surge risk due to load shedding. A surge protector installed at the DB box is strongly recommended and is required to maintain warranty validity on the electrical components within the terminal box. Warranty Summary The EARTHeCO pool pump 0.6kW carries a 24 month manufacturing defects warranty from the date of purchase. The warranty covers defects in materials and workmanship on the unit itself and excludes installation, labour, and travel costs. Electrical components in the terminal box are not covered unless a surge protector is installed. In the event of a warranty claim the unit is sent to the manufacturer for assessment, which takes approximately 2 to 5 working days, with repair taking a further 2 to 7 working days depending on the extent of the repair and parts availability. In unusual circumstances a replacement or credit note at original purchase price may be issued within 7 working days of purchase at the discretion of the distributor. Retain your purchase receipt as proof of purchase date. Frequently Asked Questions What size pool is the EARTHeCO 0.6kW pump suited for? It is suited for pools up to approximately 50 000 litres when paired with a 1 bag or 2 bag sand filter. For pools larger than 50 000 litres the 0.75kW or 1.1kW model would be more appropriate. What sand filters is this pump compatible with? It is compatible with AQUA MAX, Premium Black, Quality, Speck, and Eartheco 1 bag and 2 bag sand filters. Always confirm your filter’s maximum flow rate before installation to ensure correct matching.  How long should I run this pump each day? For a pool up to 50 000 litres the general guideline is approximately 6 to 8 hours per day in summer and 3 to 4 hours per day in winter. Calculate your specific run time by dividing your pool volume by the pump flow rate. A qualified pool technician can confirm the correct run time for your pool.  Does this pump require professional installation? Yes. The pump must be installed by a qualified pool technician and all electrical connections must be made by a certified electrician. Failure to follow the installation manual will void the warranty.  Is a surge protector required? A surge protector is strongly recommended for South African load shedding conditions. Electrical components within the terminal box are not covered under warranty unless a surge protector is installed at the DB box. What is the warranty on this pump? The EARTHeCO 0.6kW pump carries a 24 month manufacturing defects warranty from date of purchase covering the pump unit itself. Installation, labour, travel, and electrical terminal box components without surge protection are excluded.  Is this pump self-priming? Yes. The EARTHeCO EQ is a self-priming centrifugal pump that draws water from the weir without manual priming before starting. This is the standard design for in-ground residential pools in South Africa. Can this pump be used on a saltwater pool? Yes. The pump body and components are suitable for both chlorinated and saltwater pool environments. How much ventilation does the motor need? A minimum clearance of 150mm must be maintained behind the motor fan cowling at all times during operation. The pump housing must have adequate drainage and ventilation to prevent overheating and motor failure. Do you deliver nationwide? Yes. Nationwide courier delivery is available with a lead time of 2 to 5 working days. Orders over R1 000 qualify for free shipping. Collection is available from 168 Kingfisher Ave, Freeway Park, Boksburg, 1459. Key Features and Benefits 0.6kW single phase squirrel cage induction motor at 2800 RPM Rated at 0.75HP with 230V 50Hz input and 4.2A current draw IP54 ingress protection rating for outdoor pool environments Insulation Class F motor for reliable South African conditions Total head of 12 metres Closed vane impeller for consistent flow and pressure output Integrated leaf trap strainer basket with clear lid for easy visual inspection Mechanical shaft seal for long term leak prevention Self-priming centrifugal design for in-ground pool installations Internal threaded unions on inlet and outlet Supplied with 50mm and 40mm unions Compatible with AQUA MAX, Premium Black, Quality, Speck, and Eartheco 1 and 2 bag sand filters Suited to pools up to approximately 50 000 litres 24 month manufacturing defects warranty Nationwide delivery and collection from Boksburg available Technical Specifications Product Type: Pool Pump and Motor Brand: EARTHeCO Model: EQ and EQUE (EQ7112) Power: 0.6kW, 0.75HP Input: 230V, 50Hz Current: 4.2A Motor Speed: 2800 RPM Total Head: 12 metres Insulation Class: F Ingress Protection: IP54 Capacitor: 16 microfarad, 450V Bearings: DE 6203, NDE 6202 Impeller Type: Closed vane Motor Type: Squirrel cage induction, single phase Seal Type: Mechanical shaft seal Strainer: Integrated leaf trap basket with clear lid Unions Supplied: 1 x 50mm, 1 x 40mm Pool Size: Up to approximately 50 000 litres Filter Compatibility: AQUA MAX, Premium Black, Quality, Speck, Eartheco 1 and 2 bag sand filters Warranty: 24 months manufacturing defects from date of purchase Delivery: Nationwide courier, 2 to 5 working days Free Shipping: Orders over R1 000 Collection: 168 Kingfisher Ave, Freeway Park, Boksburg, 1459 Conclusion The EARTHeCO 0.6kW Pool Pump and Motor is a dependable, correctly specified pump for residential pools up to 50 000 litres running 1 or 2 bag sand filter systems. Its self-priming design, closed vane impeller, and mechanical shaft seal make it a low maintenance daily circulation pump built for South African conditions. The 24 month warranty provides confidence in the purchase provided installation instructions and surge protection requirements are followed. Available for nationwide delivery and collection from Boksburg. Installation Instructions: Warranty Information:
