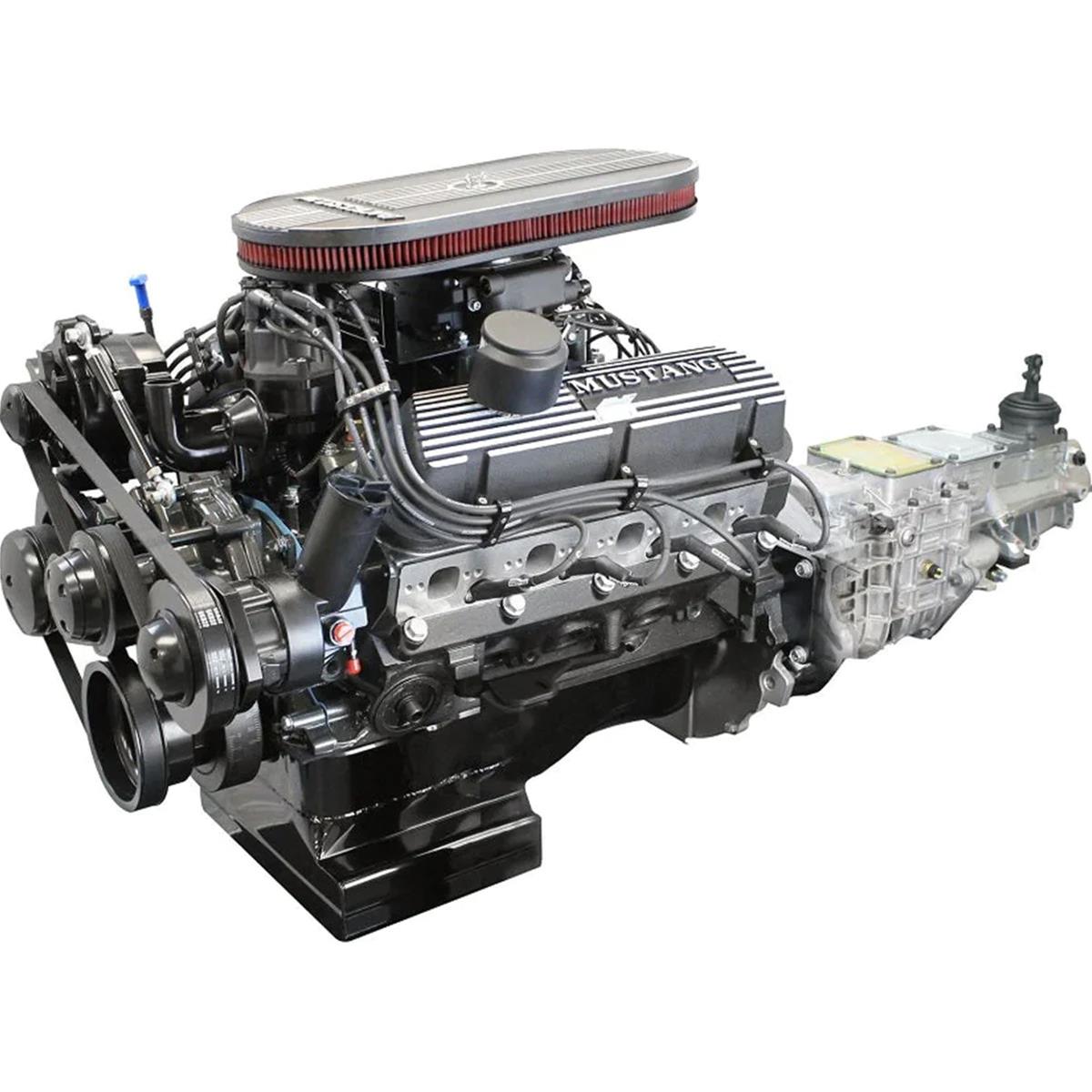

Overview Brand: BluePrint Engines Manufacturer’s Part Number: B347FKBTKXM Part Type: Engine and Transmission Combos Product Line: BluePrint Builder Series 347W/415HP Mustang Edition EFI Crate Engine and TKX Transmission Combos Summit Racing Part Number: MLL-B347FKBTKXM UPC: 887753972644 Crate Engine Family: Ford Windsor Engine Assembly Style: Long block Assembled: Yes Intake Manifold Included: Yes Carburetor Included: No Throttle Body Included: Yes Cylinder Heads Included: Yes Cylinder Head Material: Cast aluminum Distributor Included: Yes Oil Pan Included: Yes Valve Covers Included: Yes Timing Cover Included: Yes Water Pump Included: Yes Harmonic Balancer Included: Yes Spark Plugs Included: Yes Spark Plug Wires Included: Yes Flexplate Included: No Flywheel Included: Yes Transmission Controller Included: No Torque Converter Included: No Wiring Harness Included: Yes Computer Included: Yes Quantity: Sold as a kit. Notes: Black front accessory drive system includes water pump, alternator, power steering pump, A/C compressor and all belts and pulleys. BluePrint Builder Series 347W/415HP Mustang Edition EFI Crate Engine and TKX Transmission Combos BluePrint Builder Series 347W/415HP Mustang Edition EFI crate engine and TKX transmission combos take the guesswork out of matching up an engine and transmission for your ride. Featuring a fuel injected Ford small block-compatible 347 (c.i.d.) engine that produces 415 horsepower, this Mustang edition builder series includes a choice of black or polished pulley kits and TKX manual transmission. The aluminum BluePrint Engines cylinder heads help produce a nice 10.0:1 compression ratio, with assistance from the hydraulic roller camshaft, forged pistons, and steel crankshaft. Altogether, this assembly produces 415 lbs.-ft. of torque. When you need or want a new powertrain for your Ford Mustang, go with the authority in crate engines and their BluePrint Builder Series 347W/415HP Mustang Edition EFI crate engine and TKX transmission combos. Other product features, items, and specifications include: Block: * New BluePrint high-strength cast iron * Increased deck thickness and strength webbing * Priority main oiling * Main caps are 4-bolt * Improved water jacket design * One-piece rear main seal Rotating Assembly: * Cast steel crankshaft * Stroke – 3.400 in. * Forged I-beam 5.400 in. connecting rods * Forged pistons * Externally balanced BPP28 harmonic balancer Cylinder Heads: * BluePrint HP9009 models * Chamber – 60cc * Valves are 2.020 in. intake and 1.600 in. exhaust * Exhaust runners are 190cc intake and 65cc exhaust Camshaft: * Hydraulic roller * Intake valve lift – 0.543 in. * Exhaust valve lift – 0.554 in. * Intake duration at 0.050 in. of lift – 218 * Exhaust duration at 0.050 in. of lift – 226 * Lobe separation angle (LSA) – 112 degrees Ignition Timing * Initial is 10-16 degrees * Will be 34 degrees total at 3,500 rpm * Total is 32-34 degrees * Firing order is 1-3-7-2-6-5-4-8 Complete TKX 5-speed Transmission Package: * McLeod Super Street Pro single-disc clutch * Hydraulic throwout bearing * Aluminum bellhousing * Billet flywheel * Starter * Gear ratios are 2.87:1 (first), 1.89:1 (second), 1.28:1 (third), 1.00:1 (fourth), and 0.81:1 (fifth) Other Components: * Dual plane aluminum intake manifold with satin finish * Electronic fuel injection (EFI) system with pump kit * Pro Billet distributor * Mustang valve covers (scripted “Mustang” may not match images; based on availability) * Oil pan with 7-quart capacity * Complete front accessory drive includes A/C, power steering, alternator, water pump, belts, and pulleys (B347FKBTKXM is combo with black accessory drive; B347FKTKXM for polished system). * BPP7938 NGK BKR5E spark plugs (0.750 in. reach, 14mm thread pitch, 5/8 in. hex, 0.035 in. gap) * Torque converter with 2,000 – 2,400 rpm stall Note: Factory 5 applications are a special order (must call). Recommended fuel is 91 octane. Recommended oil is non-synthetic 10W30. Not designed for EGR compatibility. Applications Make: FORD Beginning Year: 1968 Ending Year: 2001 Engine Type: V8 Engine Size: 5.0L/302 Engine Family: Ford small block Windsor Fuel Delivery Type: Fuel injection Transmission: Manual Transmission Manufacturer Code: Tremec TKX
