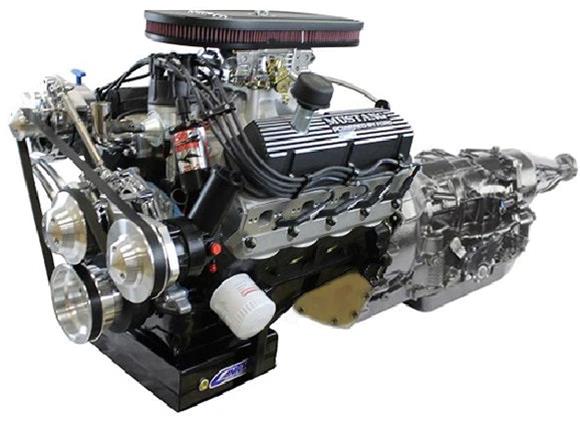

Overview Brand: BluePrint Engines Manufacturer’s Part Number: B347FK4R7M Part Type: Engine and Transmission Combos Product Line: BluePrint Builder Series 347W/415HP Mustang Edition EFI Crate Engine and 4R70W Transmission Combos Summit Racing Part Number: MLL-B347FK4R7M UPC: 887753972538 Crate Engine Family: Ford Windsor Engine Assembly Style: Long block Assembled: Yes Intake Manifold Included: Yes Carburetor Included: No Throttle Body Included: Yes Cylinder Heads Included: Yes Cylinder Head Material: Cast aluminum Distributor Included: Yes Oil Pan Included: Yes Valve Covers Included: Yes Timing Cover Included: Yes Water Pump Included: Yes Harmonic Balancer Included: Yes Spark Plugs Included: Yes Spark Plug Wires Included: Yes Flexplate Included: Yes Flywheel Included: No Transmission Controller Included: Yes Torque Converter Included: Yes Wiring Harness Included: Yes Computer Included: Yes Quantity: Sold as a kit. Notes: Polished billet aluminum front accessory drive with A/C compressor and power steering included. Special Attention: The 4R70W transmission may require modification of or replacement of driveshaft, transmission mount, exhaust routing, etc. BluePrint Builder Series 347W/415HP Mustang Edition EFI Crate Engine and 4R70W Transmission Combos BluePrint Builder Series 347W/415HP Mustang Edition EFI crate engine and 4R70W transmission combos take the guesswork out of matching up an engine and transmission for your ride. Featuring a fuel injected Ford small block-compatible 347 (c.i.d.) engine that produces 415 horsepower, this Mustang edition builder series includes a polished pulley kit and 4R70W automatic transmission. The aluminum BluePrint Engines cylinder heads help produce a nice 10.0:1 compression ratio, with assistance from the hydraulic roller camshaft, forged pistons, and steel crankshaft. Altogether, this assembly produces 415 lbs.-ft. of torque. When you need or want a new powertrain for your Ford Mustang, go with the authority in crate engines and their BluePrint Builder Series 347W/415HP Mustang Edition EFI crate engine and 4R70W transmission combos. Other product features, items, and specifications include: Block: * New BluePrint high-strength cast iron * Increased deck thickness and strength webbing * Priority main oiling * Main caps are 4-bolt * Improved water jacket design * One-piece rear main seal Rotating Assembly: * Cast steel crankshaft * Stroke – 3.400 in. * Forged I-beam 5.400 in. connecting rods * Forged pistons * Externally balanced BPP28 harmonic balancer Cylinder Heads: * BluePrint HP9009 models * Chamber – 60cc * Valves are 2.020 in. intake and 1.600 in. exhaust * Exhaust runners are 190cc intake and 65cc exhaust Camshaft: * Hydraulic roller * Intake valve lift – 0.543 in. * Exhaust valve lift – 0.554 in. * Intake duration at 0.050 in. of lift – 218 * Exhaust duration at 0.050 in. of lift – 226 * Lobe separation angle (LSA) – 112 degrees Ignition Timing * Initial is 10-16 degrees * Will be 34 degrees total at 3,500 rpm * Total is 32-34 degrees * Firing order is 1-3-7-2-6-5-4-8 Complete 4R70W Transmission (built to 650 horsepower): * Electronic transmission controller and TPS breakout harness for integration with controller and EFI * Torque converter with 2,200 – 2,600 rpm stall * Flexplate * Starter * This is a 4-speed overdrive transmission with lockup * Gear ratios are 2.84:1 (first), 1.55:1 (second), 1.00:1 (third), 0.70:1 (overdrive), and 2.32:1 (reverse) Other Components: * Dual plane aluminum intake manifold with satin finish * Complete fuel injection system * Pro Billet distributor * Mustang valve covers (scripted “Mustang” may not match images; based on availability) * Oil pan with 7-quart capacity * Complete front accessory drive includes A/C, power steering, alternator, water pump, belts, and pulleys * BPP7938 NGK BKR5E spark plugs (0.750 in. reach, 14mm thread pitch, 5/8 in. hex, 0.035 in. gap) * Thermostat and housing Note: Factory 5 applications are a special order (must call). Recommended fuel is 91 octane. Recommended oil is non-synthetic 10W30. Not designed for EGR compatibility. Applications Make: FORD Beginning Year: 1968 Ending Year: 2001 Engine Type: V8 Engine Size: 5.0L/302 Engine Family: Ford small block Windsor Fuel Delivery Type: Fuel injection Transmission: Automatic Transmission Manufacturer Code: 4R70W
